PI®-Power-Compact 450 UV DF osmosis system, + glyphosate filter set

Unique direct-flow reverse osmosis system without a storage tank. For fast and convenient drinking water filtration. Additionally includes a PI®-Cell-Vitalizer for the mineralization and energization of the filtered water. Manufactured in the European Union.



• Living water with the quality of the best spring waters
• Highest rejection rates for impurities (97.5% - 99%)
• Very fast water filtration directly from the cold water line
• Low wastewater rate of 0.45 liters of wastewater per liter of tap water
• Prevention of contamination by avoiding a water tank (standing water)
• Continuous membrane flushing and water-cooled pump (no thermal issues)
• Space-saving and compact design with indicator lights for safe operation
• Low maintenance and follow-up costs thanks to long-lasting membrane
• 3-liter PI®-water test sample available to order free of charge from us



The PI®-POWER Compact 450 model is particularly well-suited for the following applications:

• Large households
• Catering businesses
• Large medical practices and small clinics



Follow-up costs (as of 2/2017):

• Pre-filter set: Change every 6 months (24.80 Euros)
• Membrane set: Change every 2 years (291.50 Euros)
• PI®-Cell Vitalizer: Change every 6-10 years (816.00 Euros)
• Glyphosate replacement filter: Change every 6 months (119.00 Euros)



Scope of delivery: The reverse osmosis system is supplied completely ready for connection. It consists of the under-sink unit that filters the water and the PI®-Cell-Vitalizer, which mineralizes and energizes the filtered water. The delivery specifically includes the following components:

• PI®-Power-Compact 450
• PI®-Cell-Vitalizer SPECIAL
• UV-LED lamp, direct installation before the vitalizer/after the membranes (see image)
• Water faucet (3-way faucet available upon request for an extra charge)
• T-piece with pressure gauge and pressure reducer (for connection to the angle valve)
• Water stop for leak monitoring
• Connection set with small parts

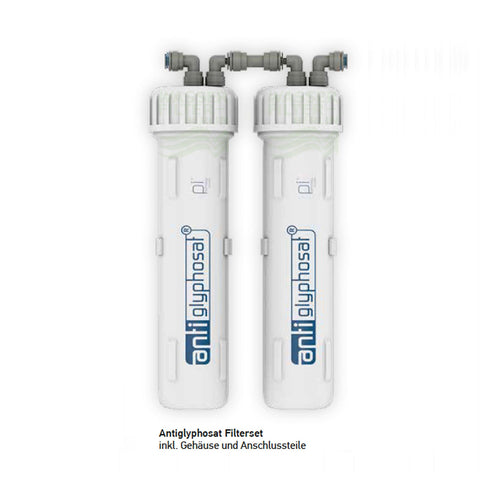

• Glyphosate combi-set, consisting of two housings incl. Antiglyphosat® filters.
  Prepared for easy installation. The set only needs to be connected;
  filters are already installed in the housings.

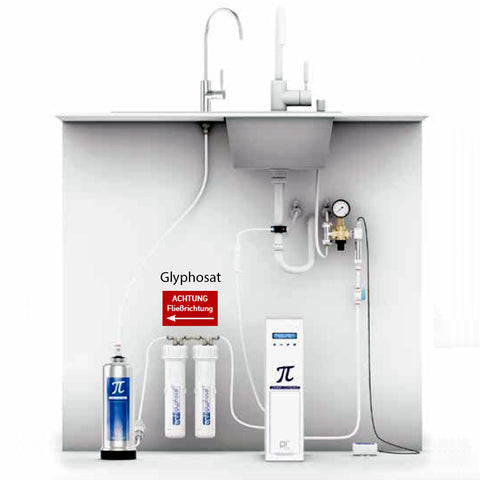

  The double filters must always be connected in series AFTER the reverse osmosis unit (see also image)

Free water sample: A test sample of the water can be ordered from us free of charge.



Materials used: All materials used are high-quality and free of harmful substances. The housing of the unit and the vitalizer is made of stainless steel. All plastic parts used are guaranteed to be free of so-called plasticizers (phthalates), Bisphenol A (hormones), as well as acetaldehyde and antimony.

Requirements for the input water (before reverse osmosis)
1. The input water must comply with the Drinking Water Ordinance!
2. The raw water temperature should be between 4 and 40°C.
3. The raw water pressure must be over 1.7 bar.
4. The raw water TDS content (sum of all dissolved substances) must be below 600 ppm (1200 µS) (for values above this, please send a water analysis and request special information).
5. The raw water hardness should be below 25° dH (for values above 25° dH, please send a water analysis and request special information on pre-softening)



Technical data for osmosis system:

• Operating voltage: 220-240V AC
• Capacity: 4 to 4.6 liters/minute
• Input water: temperature 4-40°C, water pressure min. 1.7 bar
• Purified water: 55% purified water corresponds to 2.2 to 2.5 liters/minute
• Wastewater: 45% wastewater corresponds to 1.8 to 2.1 liters/minute
• Osmosis membrane: 3 pieces 150 GPD reverse osmosis membrane
• Pre-filter: 1 piece sediment activated carbon filter (combi-filter)
• Housing dimensions (H/W/D): vertical installation 450x110x450mm, horizontal installation 110x450x450mm
• Vitalizer dimensions: (diameter 130mm, height 370mm)
• Housing: stainless steel
• Stand part: Duracon
• Cartridge: polypropylene
• Weight: 2.9 kg



Technical data PI®-Cell-Vitalizer Special:

• Flow rate: 2.2-2.5 liters/minute
• Water pressure: 0.5 to 6 bar
• Housing: stainless steel
• Stand part: Duracon
• Cartridge: polypropylene
• Weight: 2.9kg
• Dimensions: diameter 130mm, height 370mm

IMPORTANT INFORMATION



Checking the goods: Please check your system, replacement filters, or spare parts immediately upon receipt for transport damage. For this purpose, also remove the cover of your system to check the interior.

Commissioning: The system must be connected and put into operation within a maximum of 7 days to avoid potential bacterial growth. When installing the system, it is essential to observe the flushing times specified in the installation instructions (reverse osmosis 20 min., entire system incl. PI-Cell Vitalizer an additional 20 min.). The pre-filters can be stored in their original packaging for up to 3 years.

Installation: You can view the installation step-by-step via the following link.

https://pi-power-compact.com/de/installation

Warranty: You receive a 2-year warranty on your PI-Power Compact model. Please keep the original packaging and instruction manual for this purpose! In case of loss, the special packaging can be reordered at a cost.
